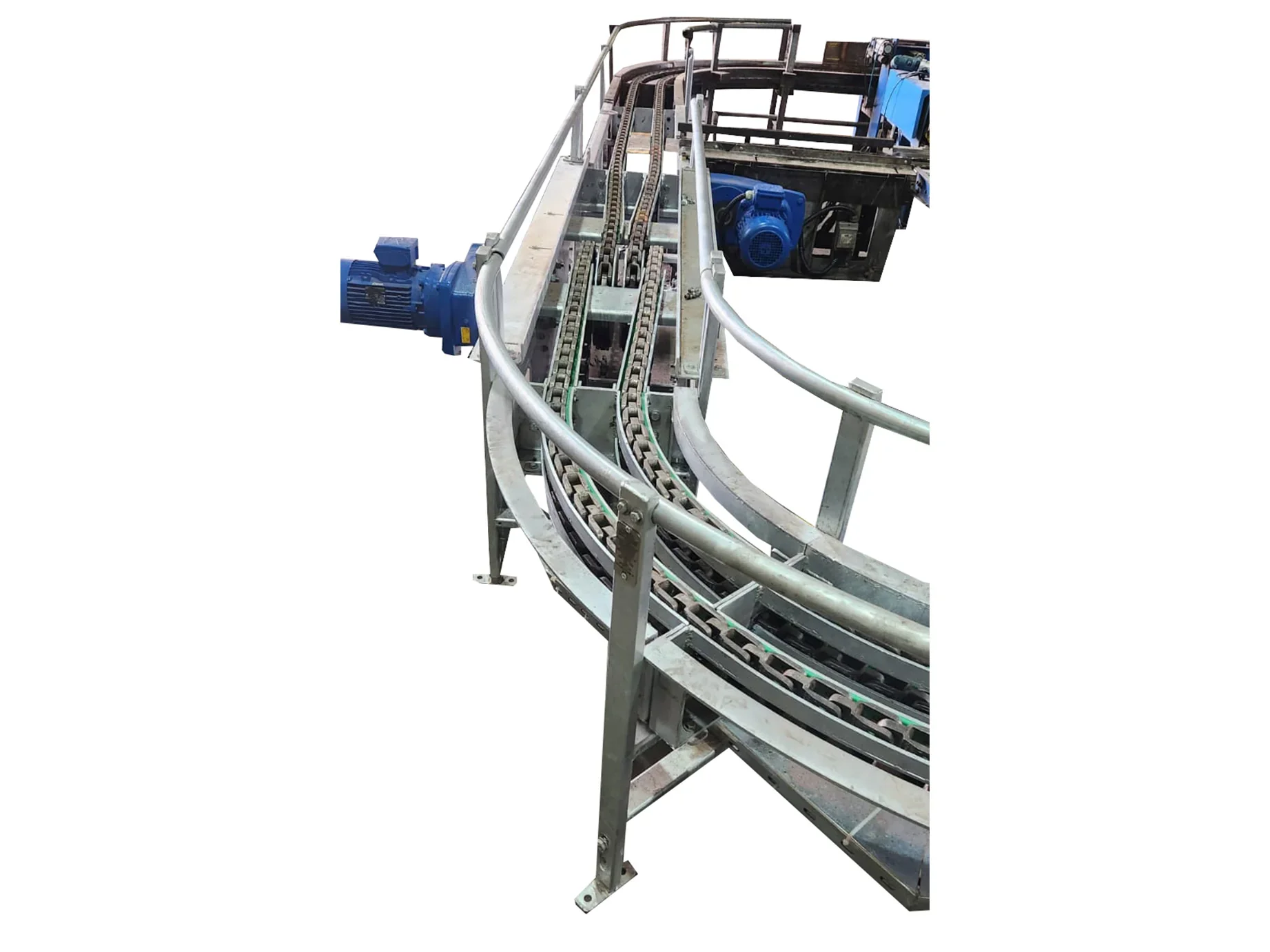

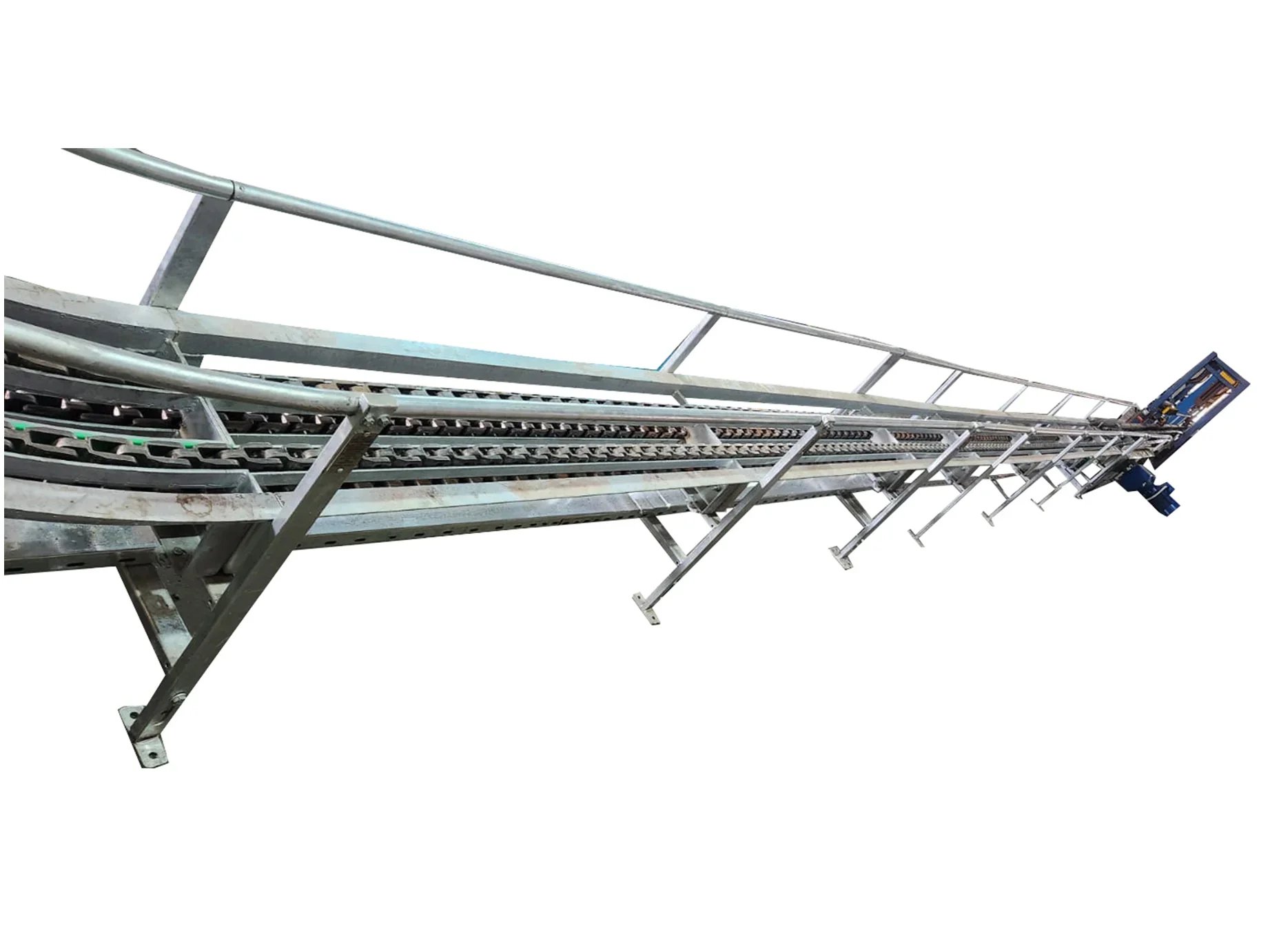

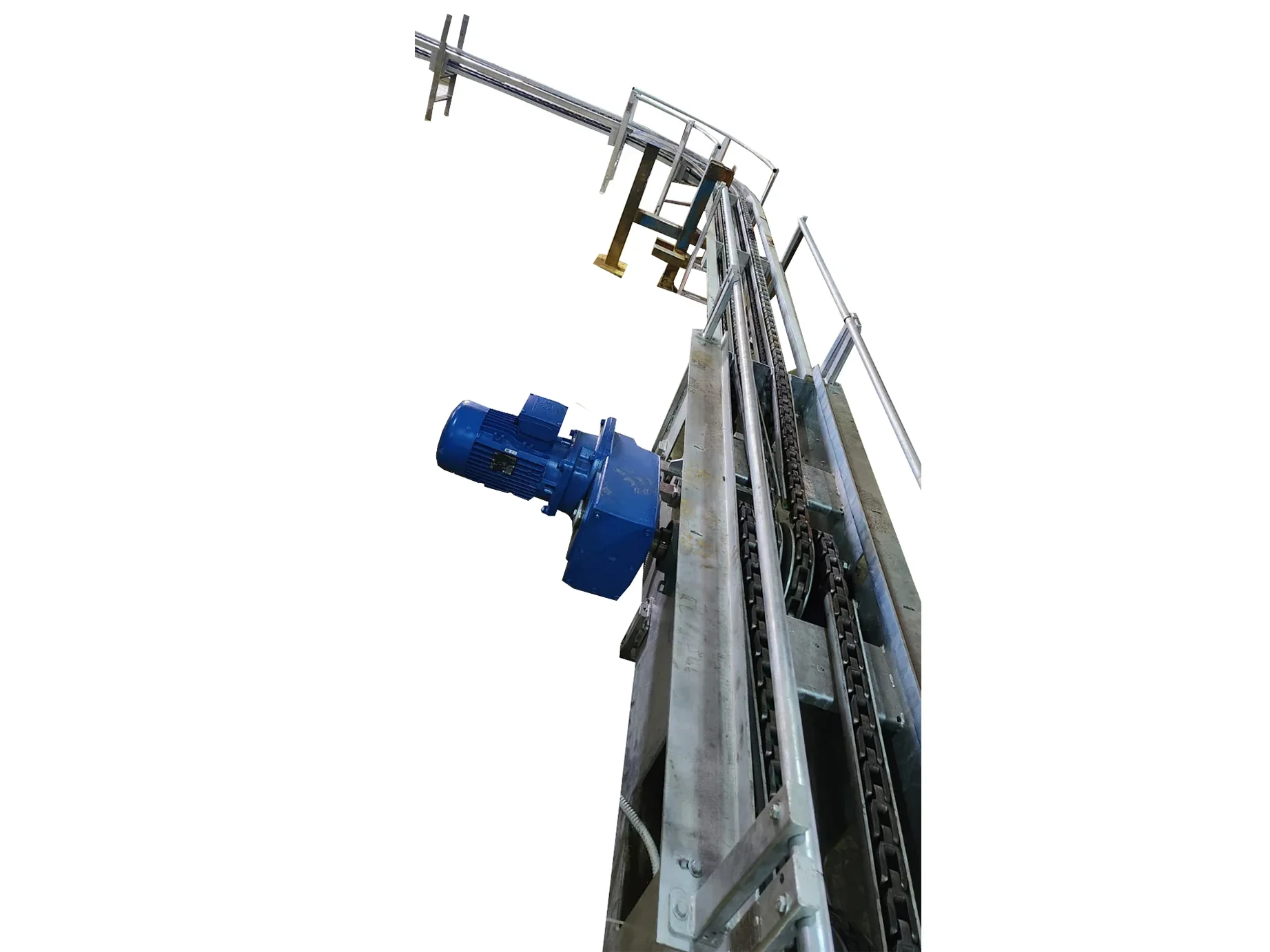

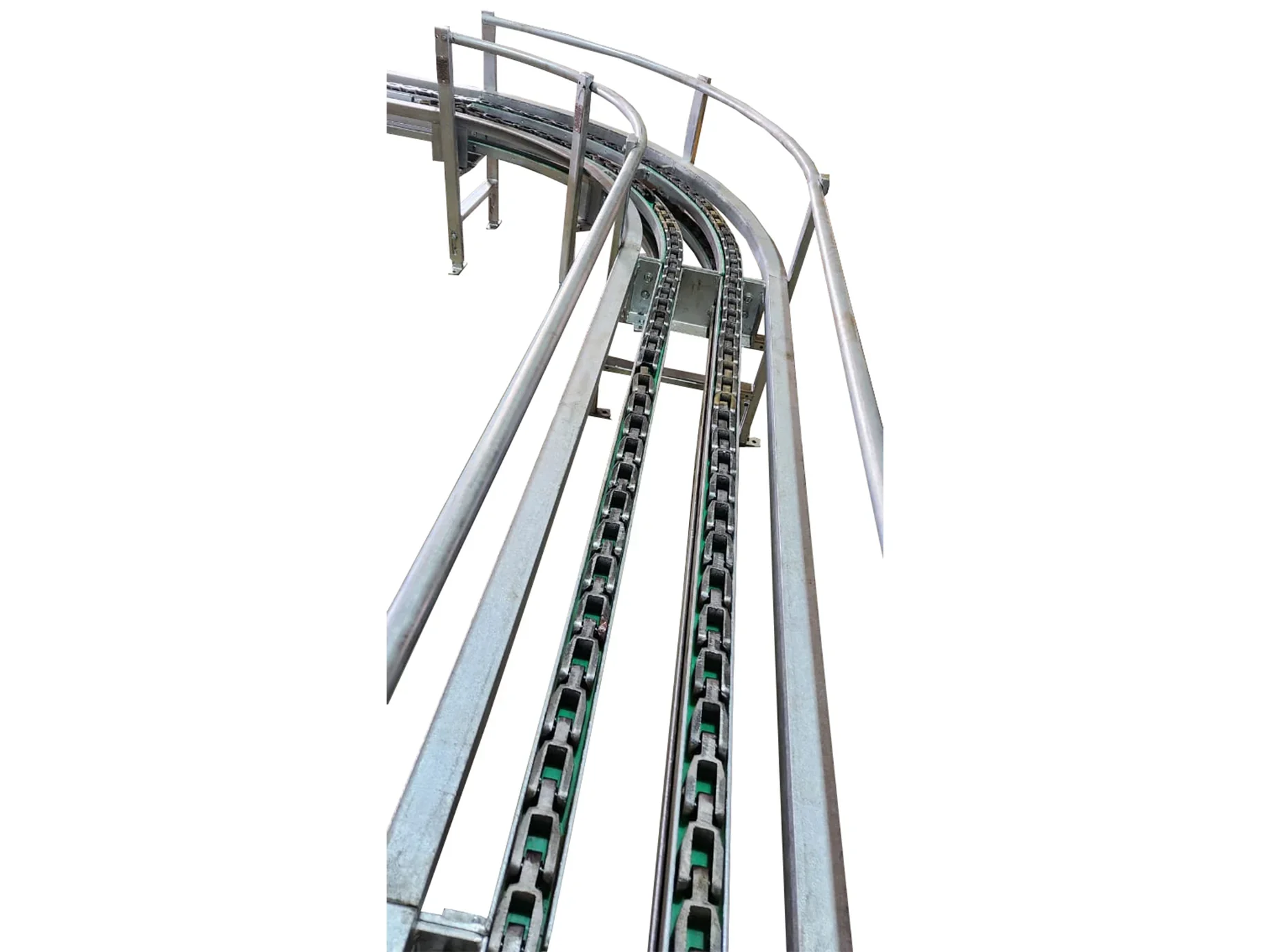

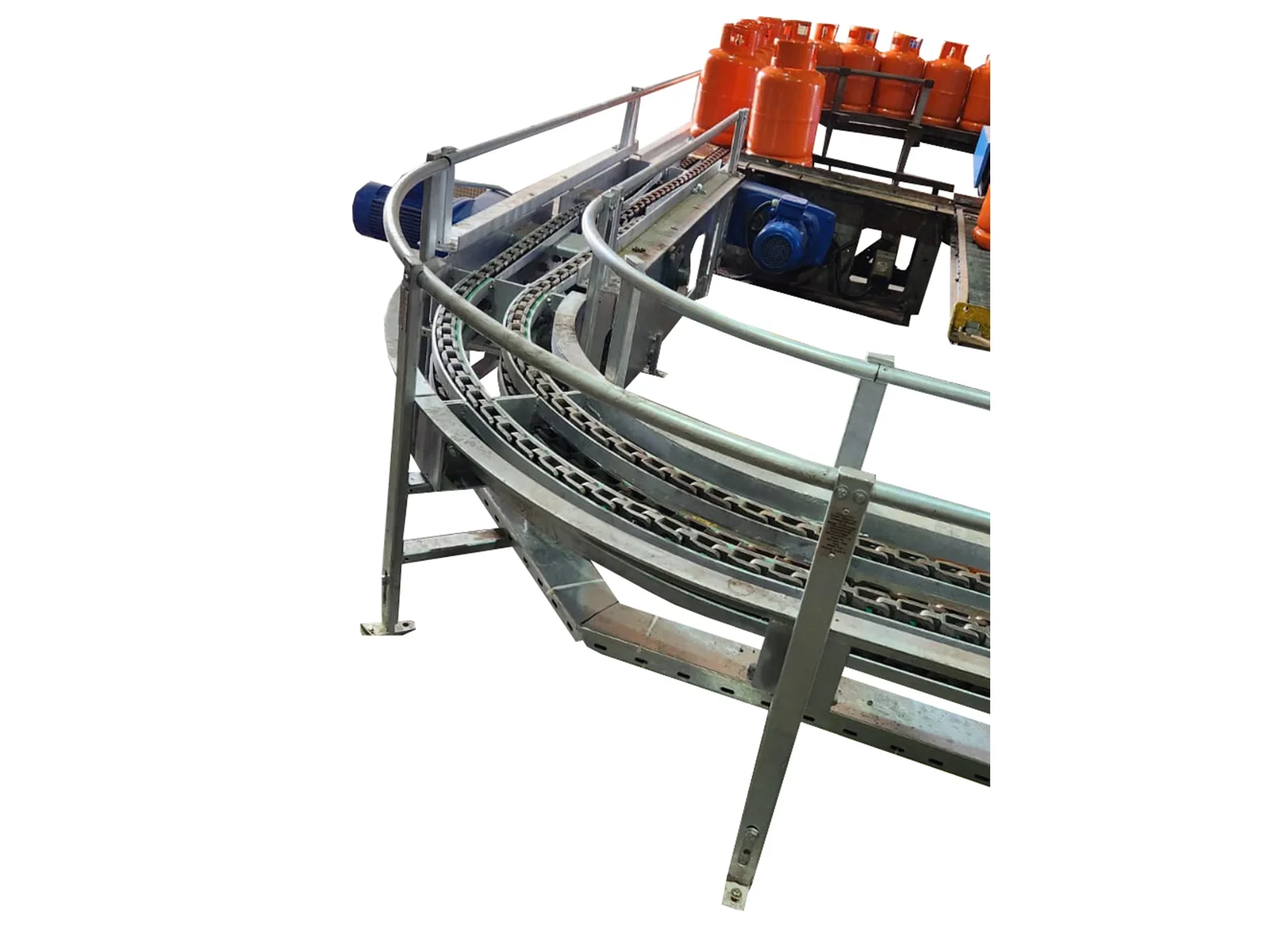

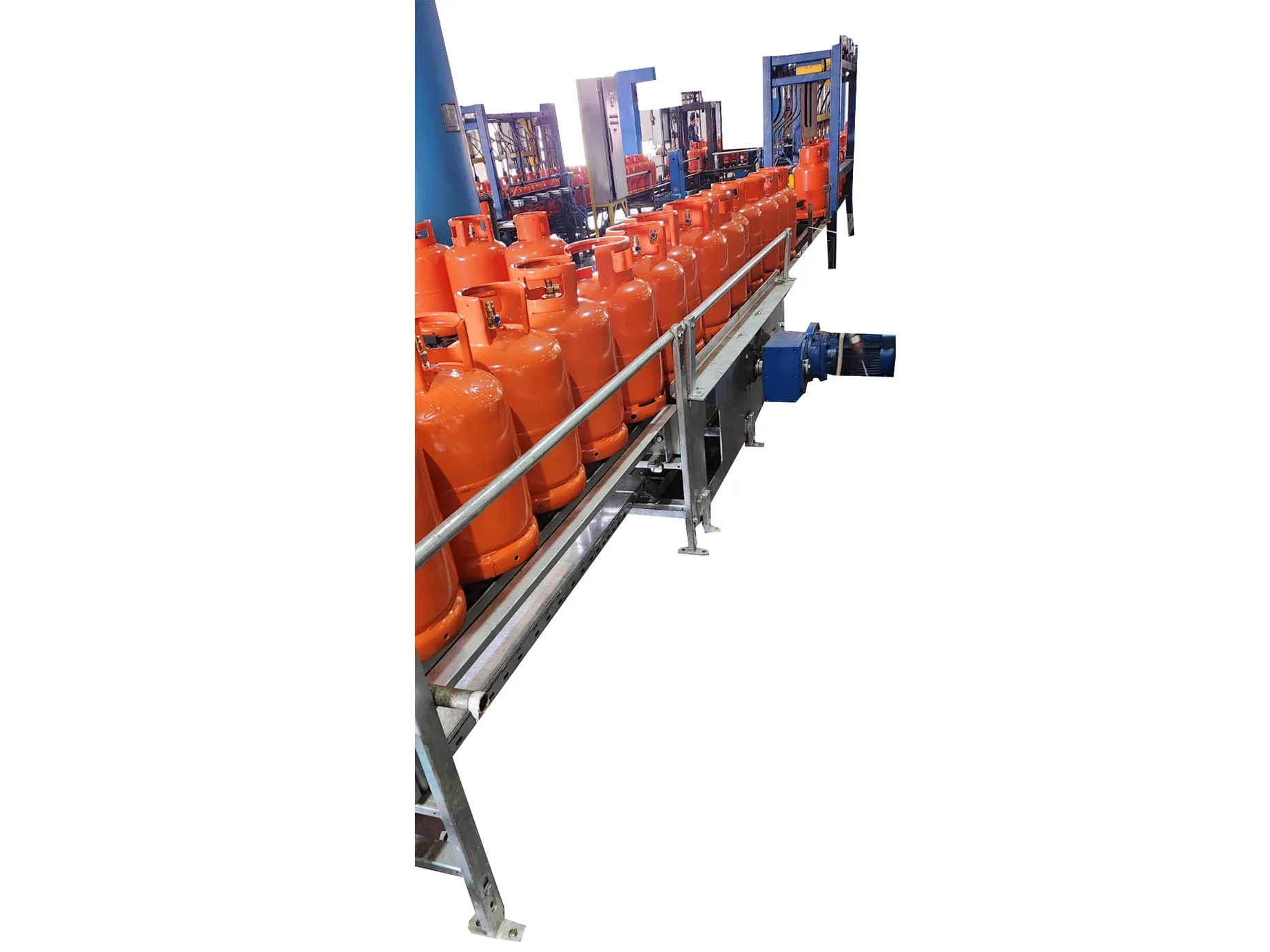

A robust and reliable conveyor system designed specifically for the safe handling and transport of LPG cylinders. Built with a heavy-duty chain mechanism, this conveyor ensures smooth movement, precise positioning, and long service life in demanding gas plant environments. It is ideal for integration with filling stations, inspection lines, and storage facilities, while maintaining the highest safety standards required in the gas industry.
Applications:
LPG cylinder filling plants
Zones 1,2,3
Wet or dry lines
Cylinder testing and inspection lines
Gas distribution centers
Warehousing and storage facilities
Conveyor integration with automated filling and weighing systems
STRUCTURE :
Chain Material: Steel – IECEx certified
Frame: Steel hot dip galvanized – Steel powder coated paint
Load: Up to 150KG/meter
Spead: Up to 20 meter/min
Dimensions: All sizes are available upon request
Accessories: Several separate add-ons and accessories such as sensors with stopper
SPECIAL CHARACTERISTICS :
Designed for safe and efficient LPG cylinder handling
Heavy-duty chain ensures reliability in continuous operations
Compatible with filling, capping, weighing, and testing equipment
Equipped with European brand electric motor and control panel
Can be offered with a explosion proof control panel
Fully customized to meet plant requirements and safety regulations
Made In KSA
