Applications
Industrial
Transformation of metallic
logistics Industry
Plastic parts
Stamping
conveying of sheets

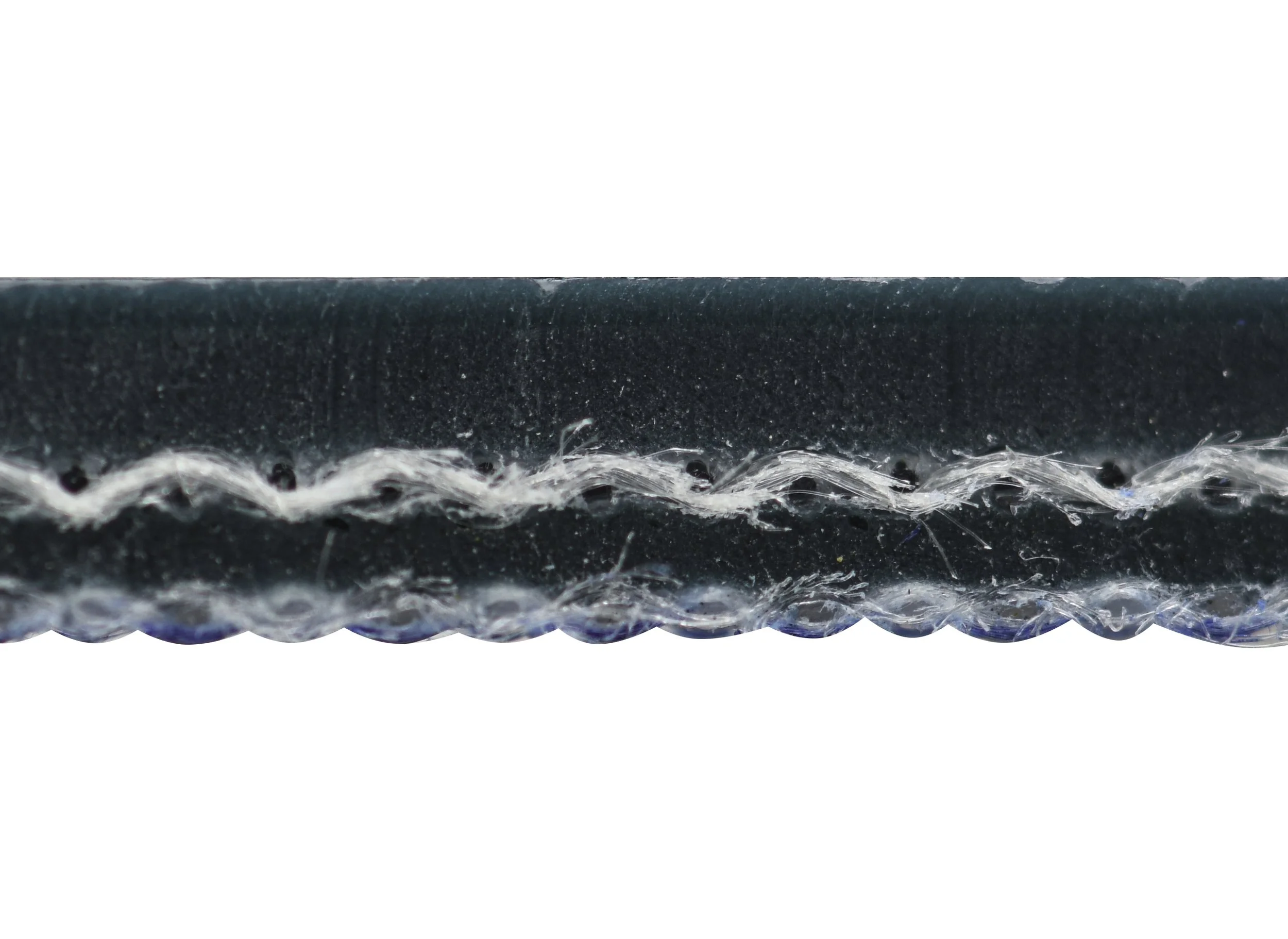

STRUCTURE :
Total thickness : 4 mm
N° of plies: 2
Fabric : Polyester
Weft : Rigid
Weight : 4.8 KG/M2
Constant Temp Min : -5 ℃
Constant Temp Max.: 80 ℃
Intermittent Temp Min : -15 ℃
Intermittent Temp Max: 100 ℃
Material: PVC
Color: Green
Breaking load: 200 N/mm
Working load: 17 N/mm
SPECIAL CHARACTERISTICS :
Antistatic Top Cover
Minerals oils & greases resistant
Excellent abrasion resistance
Cut resistant
Country of origin : Spain
