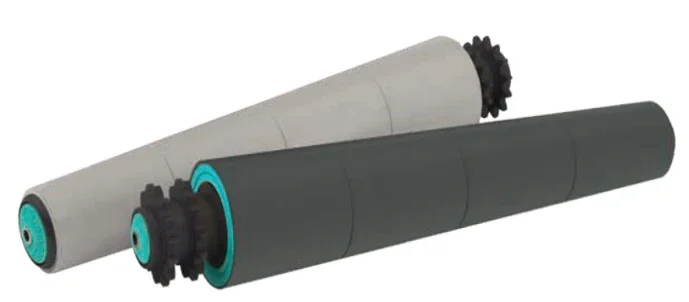

Curve Driven Roller W600mm

FEATURES

• Abrasion resistant

• Low noise

• Shockproof

• Female Thread

• Double Polyamide sprocket

• Polymer Double Sprocket

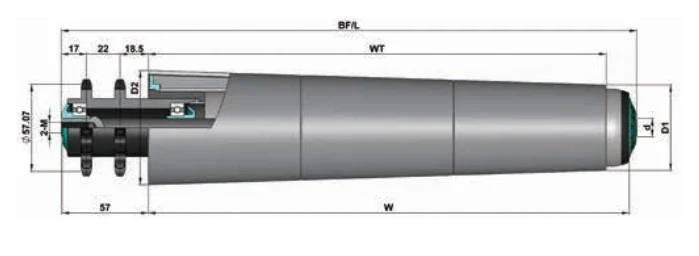

STRUCTURE :

W (mm): 600

D (mm): 50

T (mm): 1.5

D1(mm): 55.6

D2(mm): 89.9

BF/L (mm): 663

WT (mm): 545

Max weight (Kg): 50

Temperature range: ℃ -5 To 40
