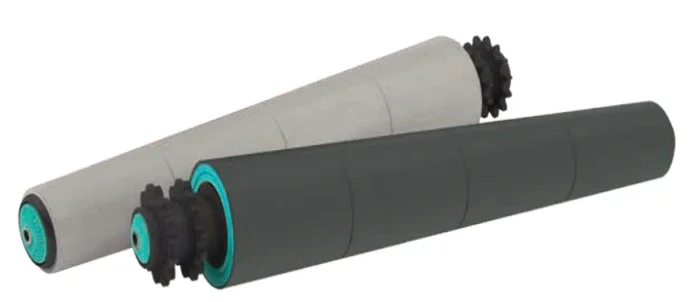

Curve Driven Roller W800mm

FEATURES

• Abrasion resistant

• Low noise

• Shockproof

• Female Thread

• Double Polyamide sprocket

• Polymer Double Sprocket

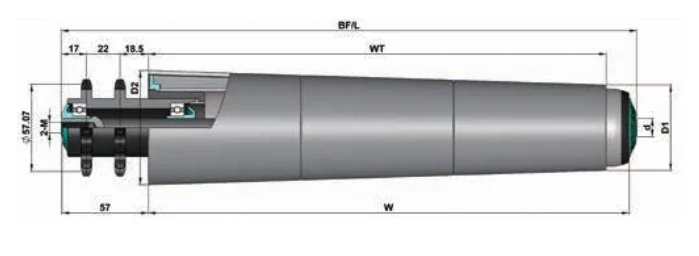

STRUCTURE :

W (mm): 800

D (mm): 50

T (mm): 1.5

D1(mm): 55.6

D2(mm):102.5

BF/L (mm):863

WT (mm): 745

Max weight (Kg): 50

Temperature range: ℃ -5 To 40
